3-blade carbon fiber propellers for FPV drones

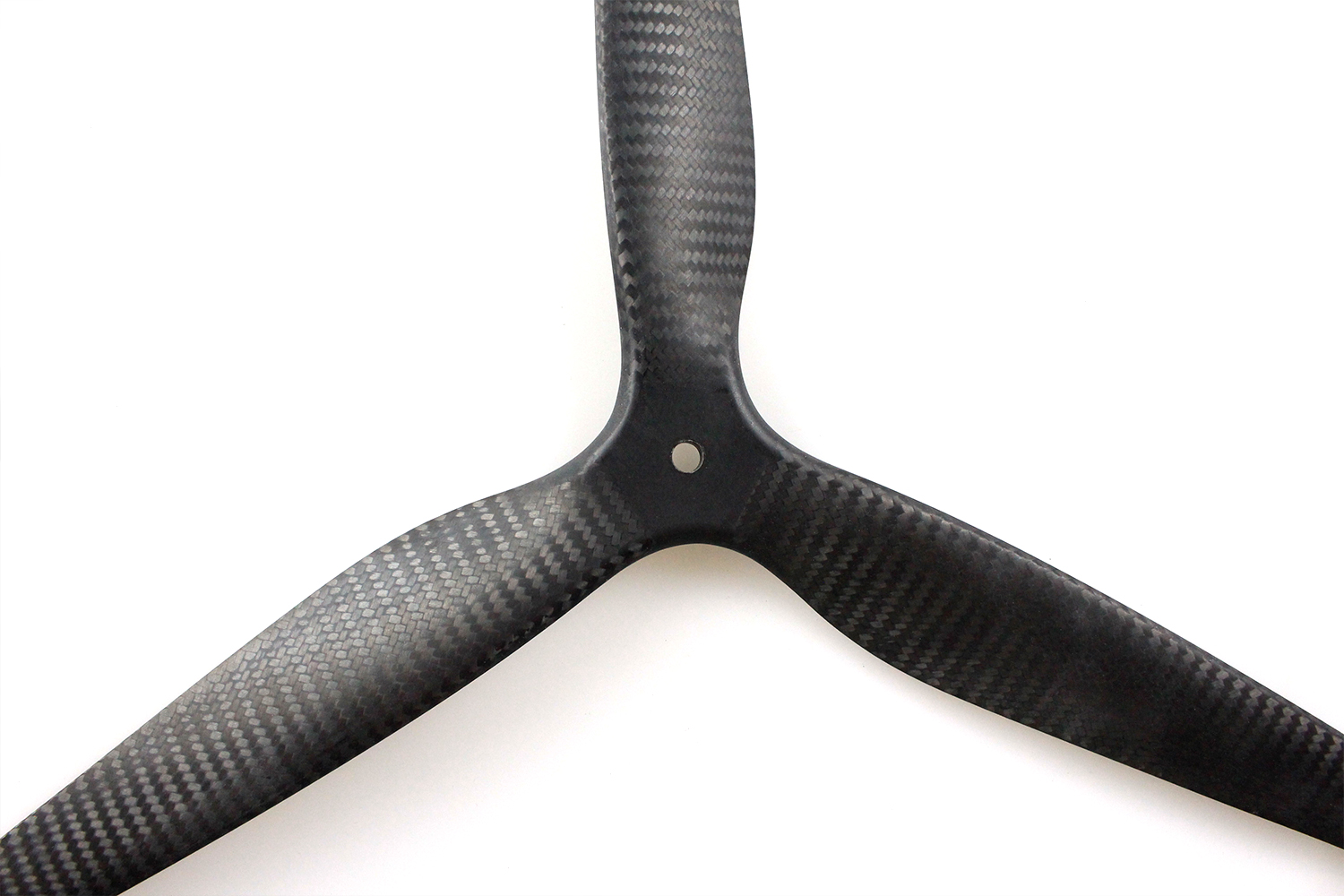

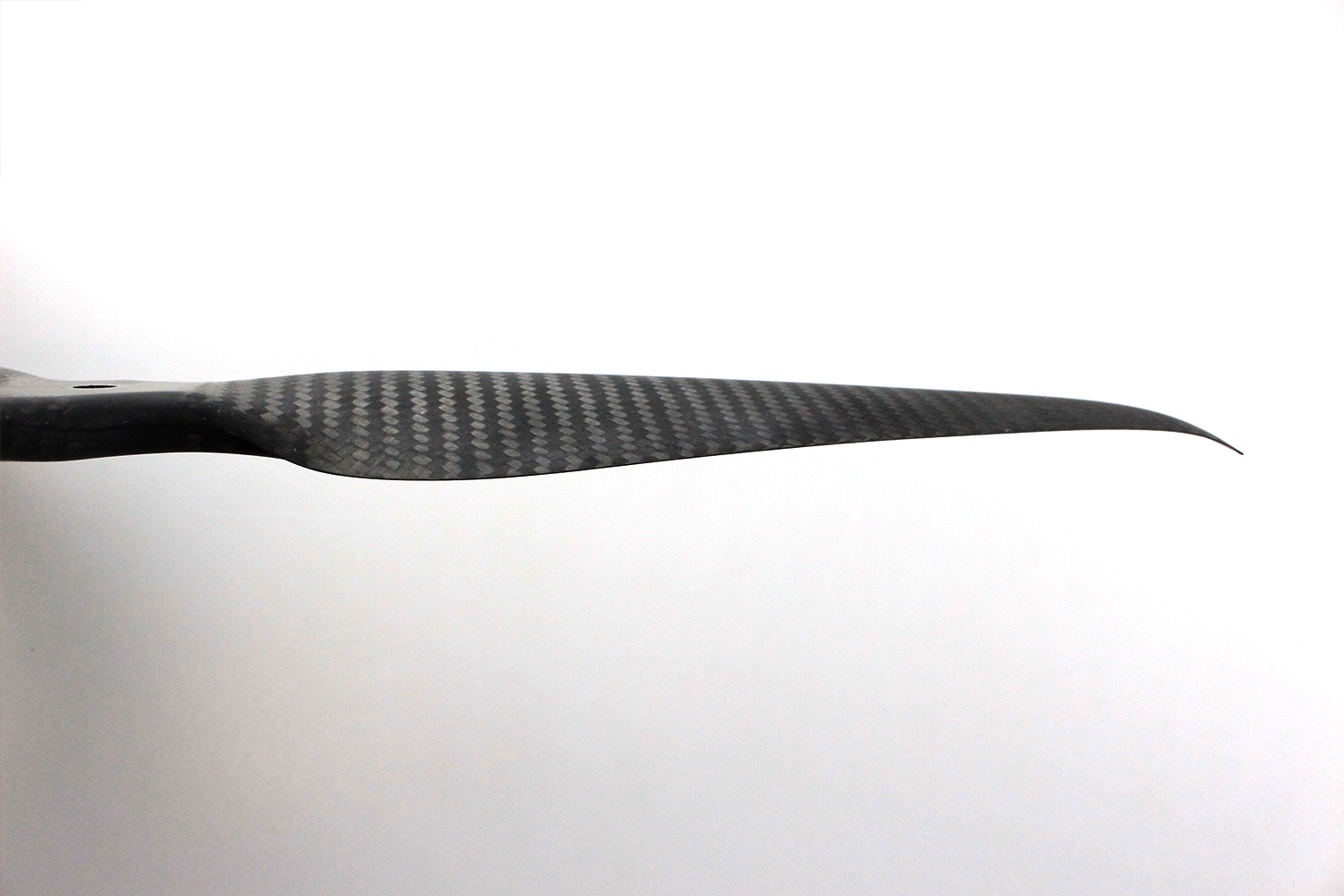

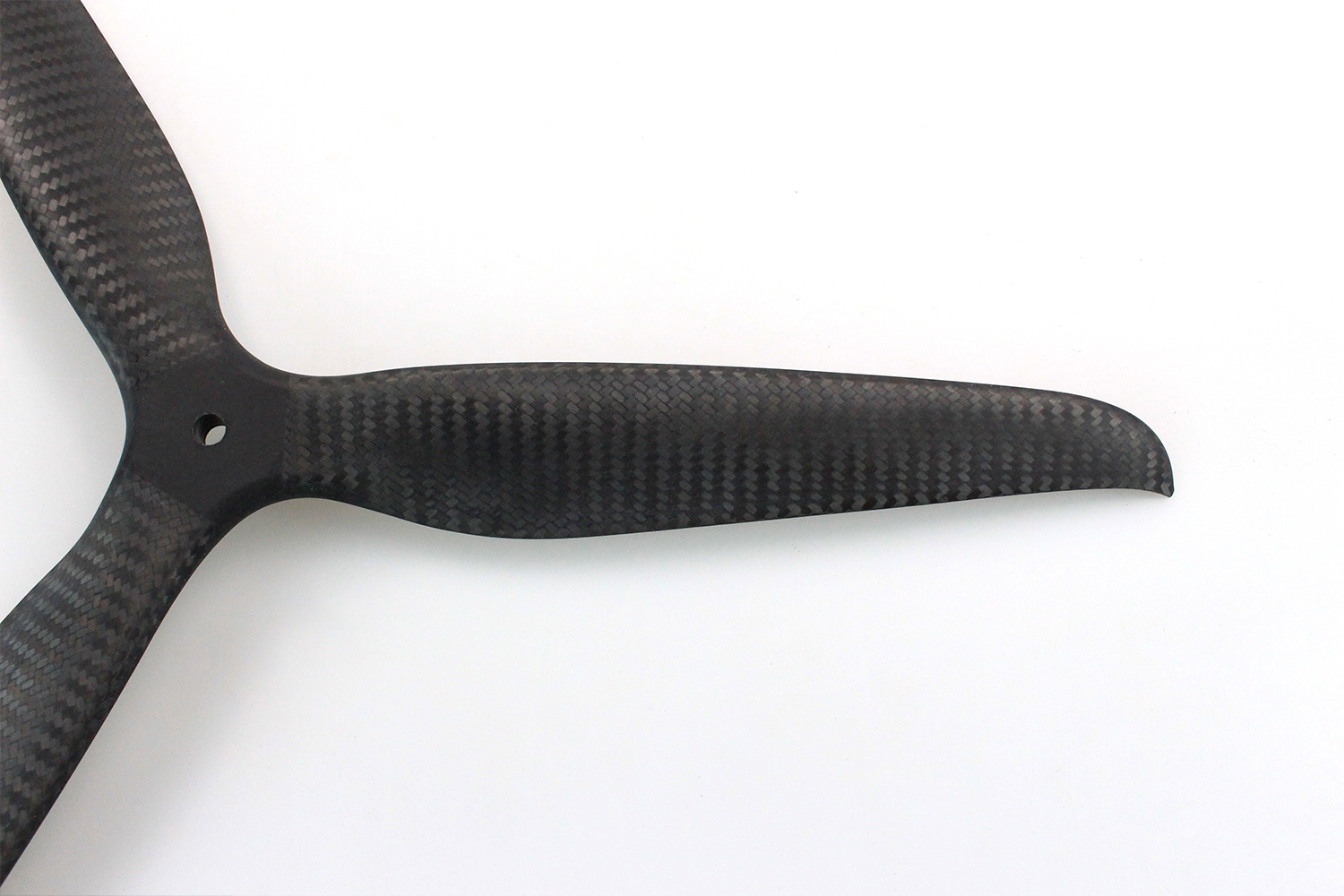

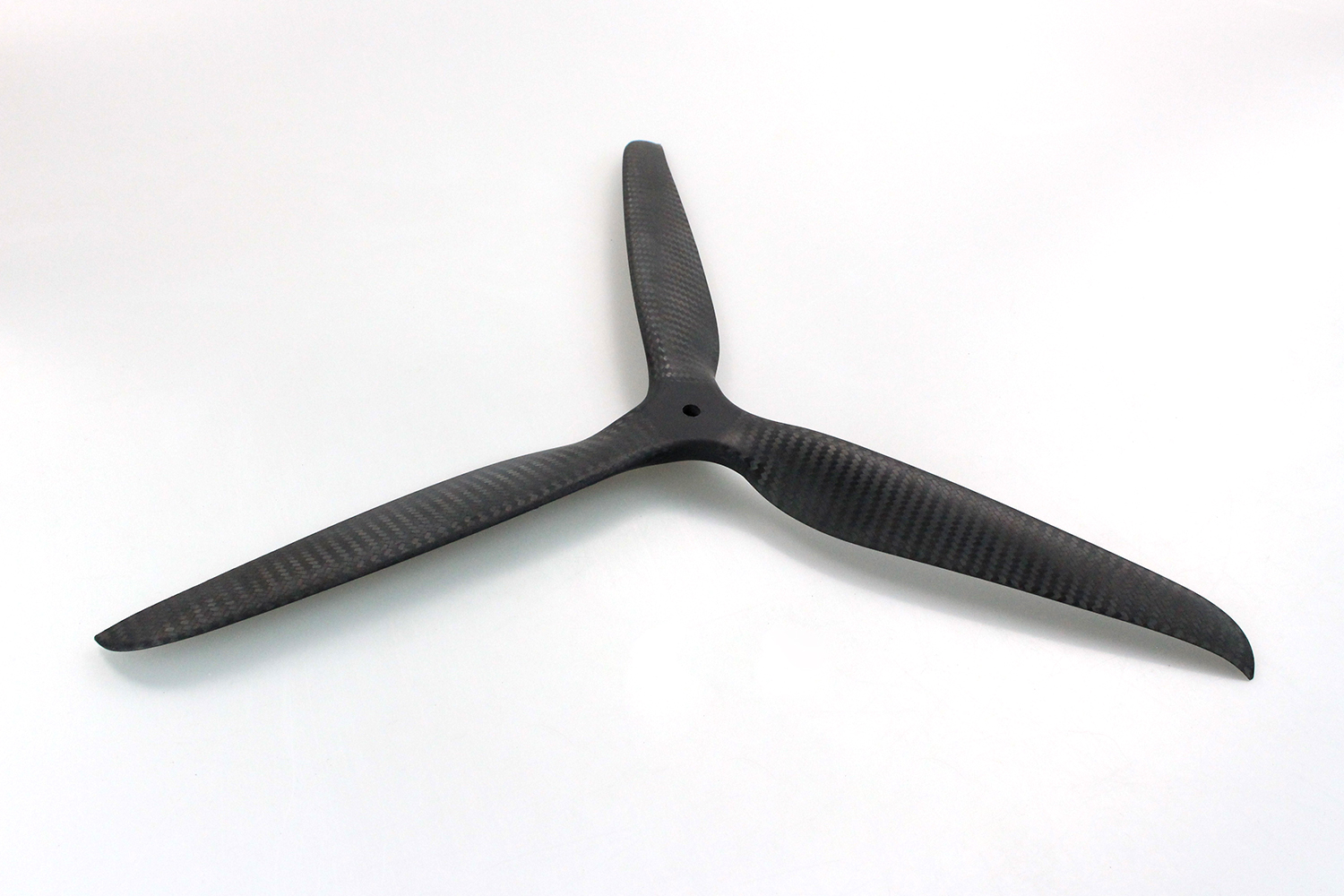

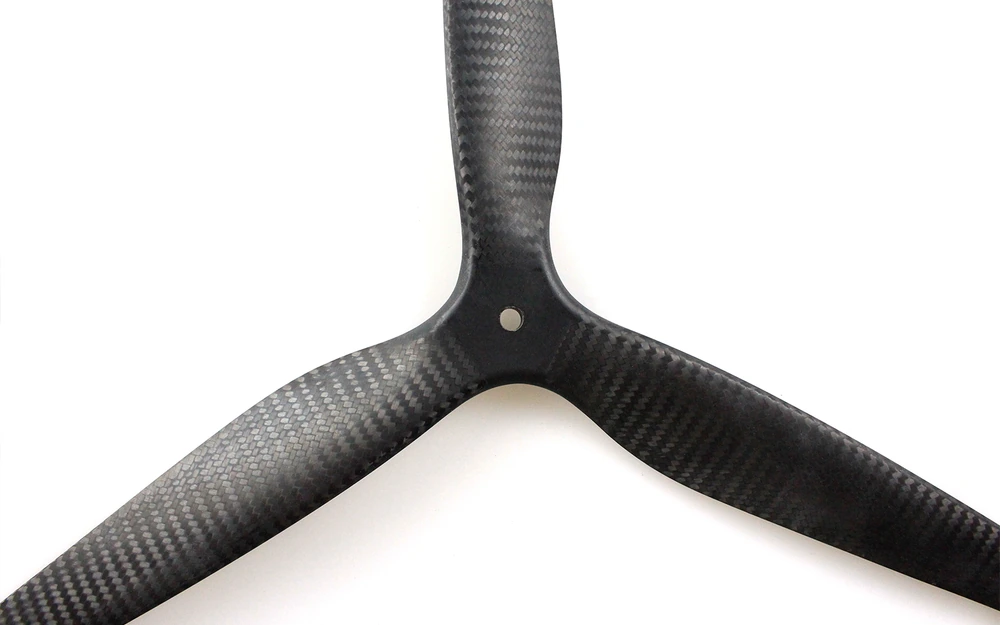

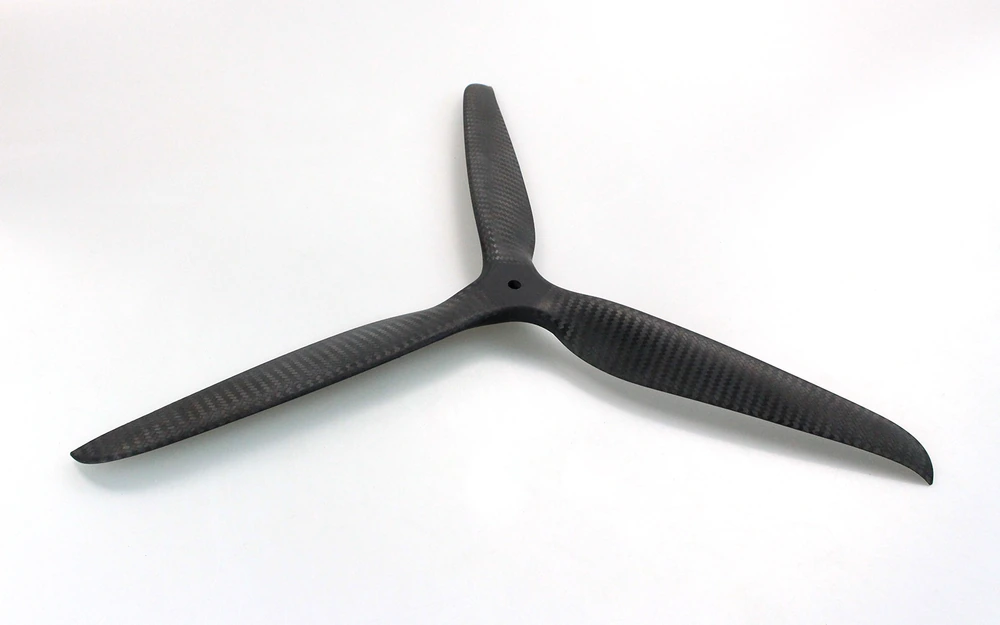

The 3-blade carbon fiber propellers for fpv drones of the Lighter lineup: 3-blade reinforced design for heavy-lift and high-speed fpv flying. One-piece carbon fiber construction delivers a balanced, efficient blade for fpv drones. Diameters 17 – 22 inch.
FA details
FA series — specificationSheet P-04
01FamilyFPV — FA3-blade carbon fiber propellers for FPV drones
02Blade configuration3-blade, fixedReinforced for rigidity and dynamic balance
03PlatformFPV dronesHeavy-lift and high-speed FPV
04MaterialCarbon fiberOne-piece molded
05Diameter17 – 22 inchStock range; other sizes to order
06PitchTo order (inch)Matched to motor / engine
07Hub drillingTo your motor (mm)Any bolt pattern
08Surface finishStandard glossCustom treatment available
09BrandingOptionalYour logo printed on the blade
Dimensions are built to order — full charts for stock sizes are in the catalogue. Test data available on request.
FA chart
| Diameter(inch) | Pitch(inch) | Rotation Direction |
|---|---|---|
| 17 | 8 | CW/CCW |
| 18 | 8 | CW/CCW |
| 19 | 8 | CW/CCW |
| 20 | 8 | CW/CCW |
| 21 | 8.4 | CW/CCW |
| 22 | 8.8 | CW/CCW |
Every FA can be customized.
Size, pitch, material, blade type, surface treatment, drilling pattern, your logo — or a full one-off design developed with you.
