VB
Purpose-built propellers for VTOL aircraft

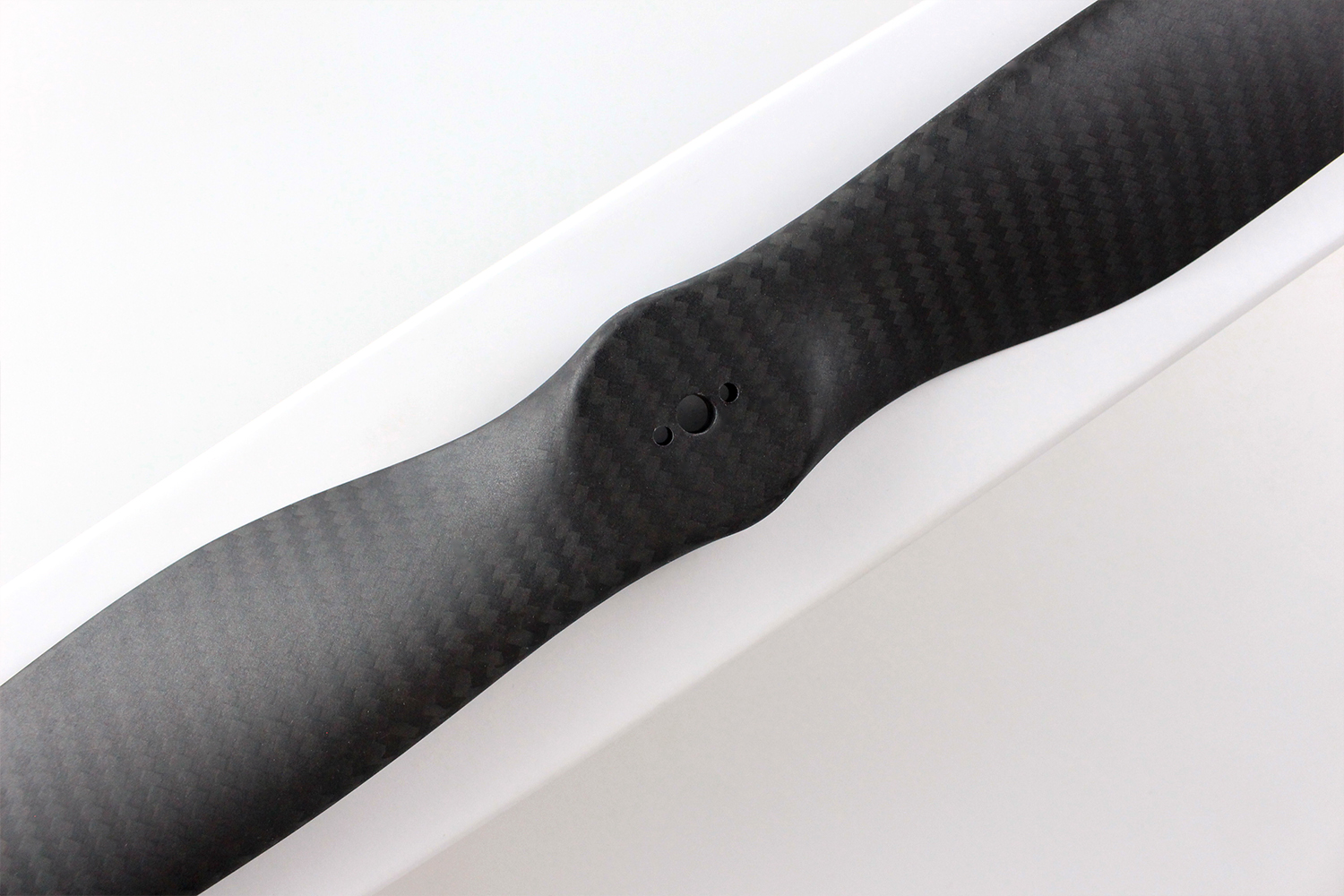

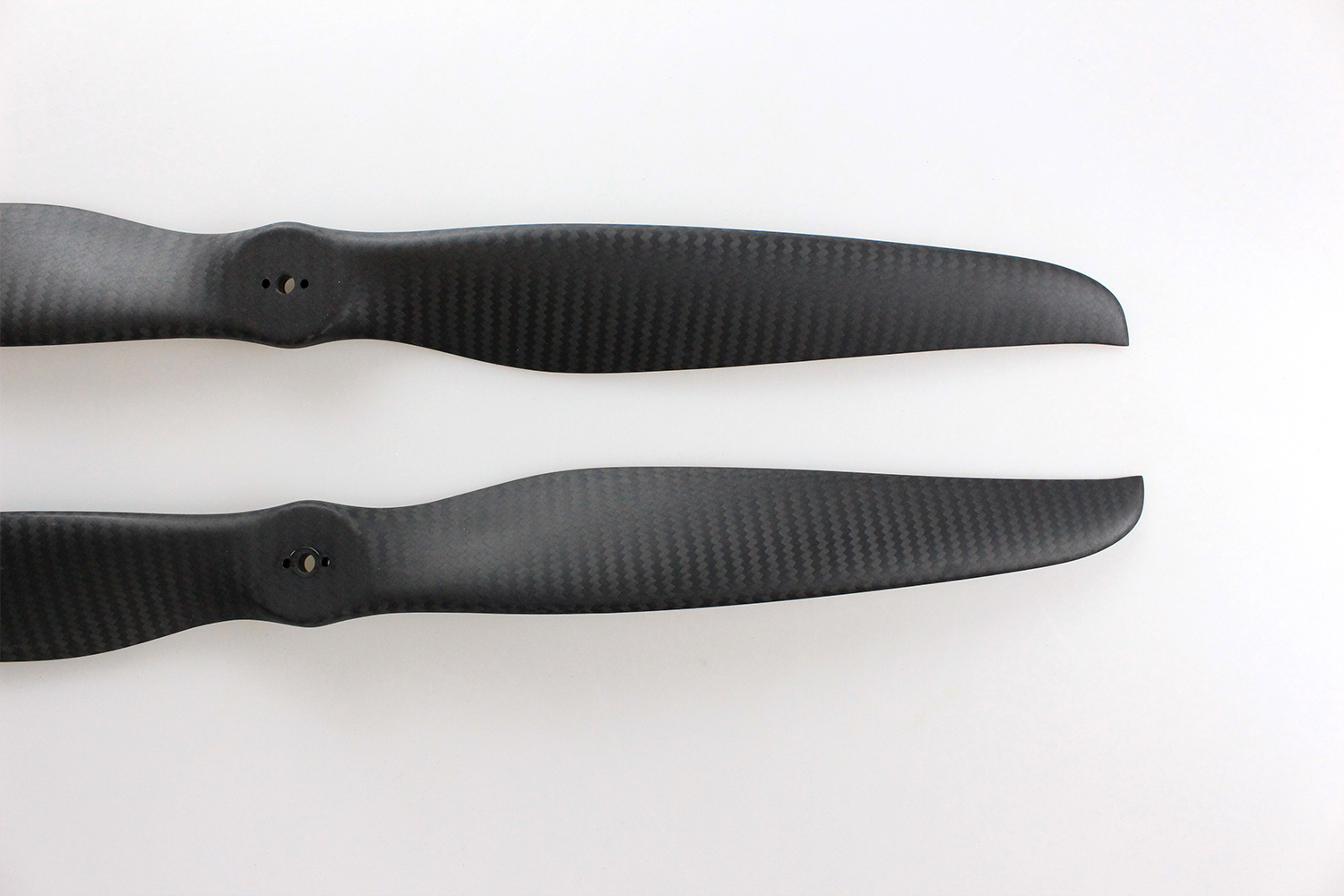

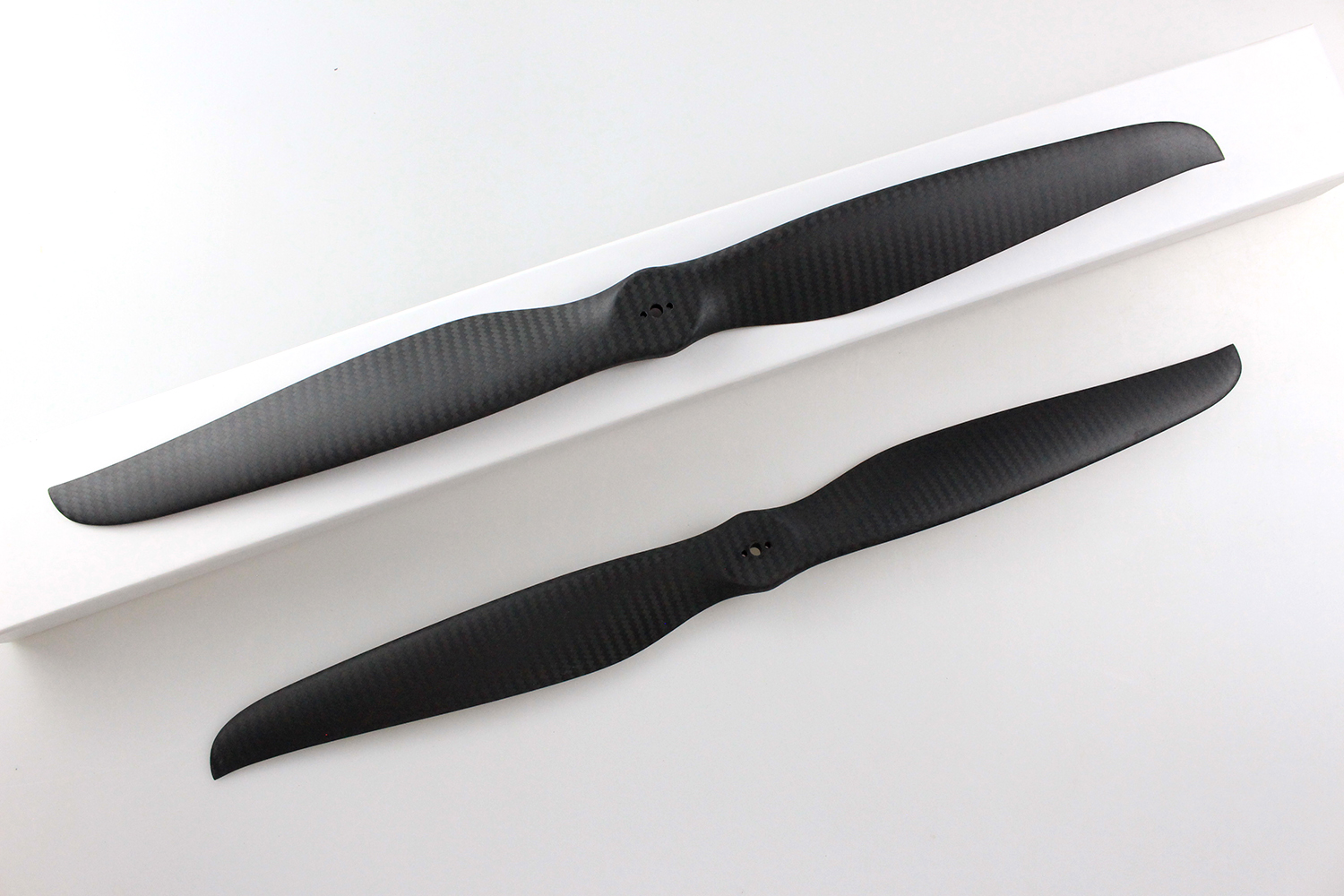

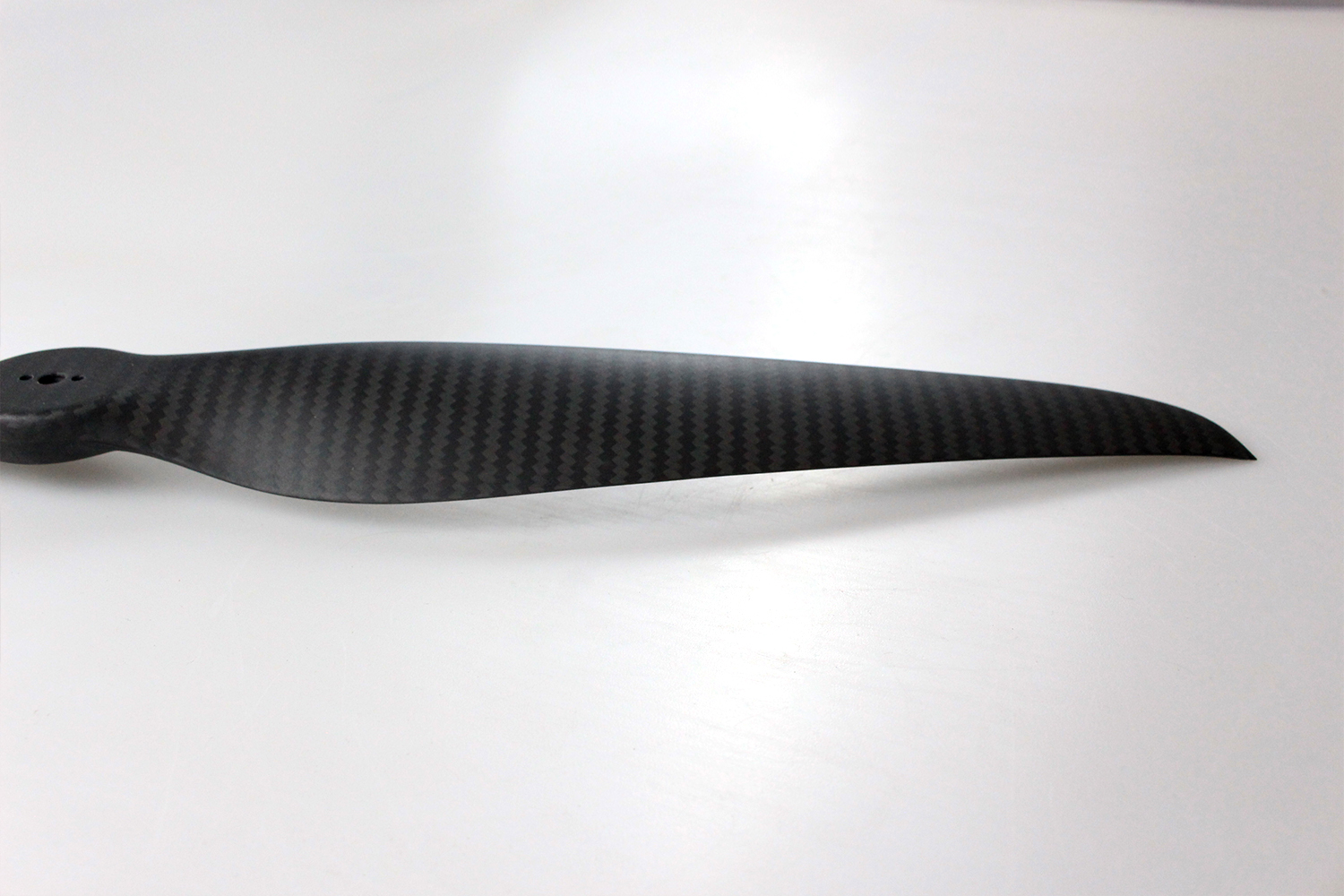

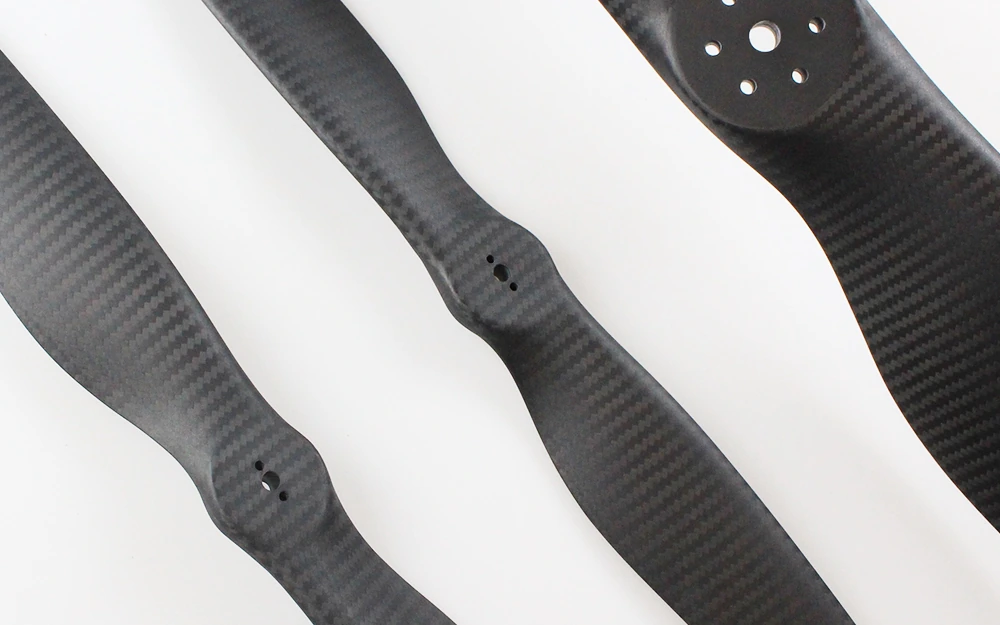

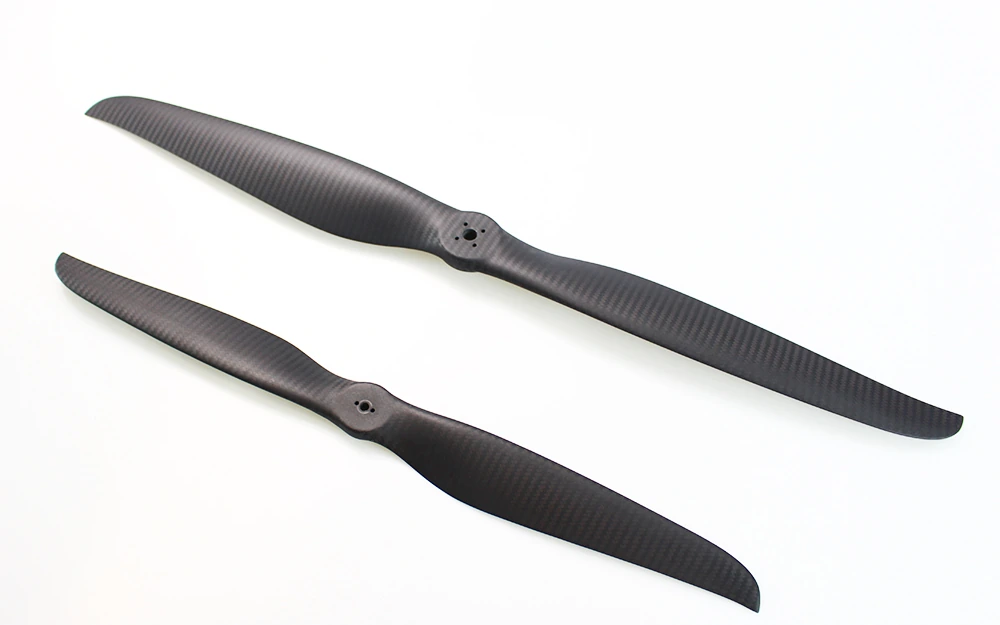

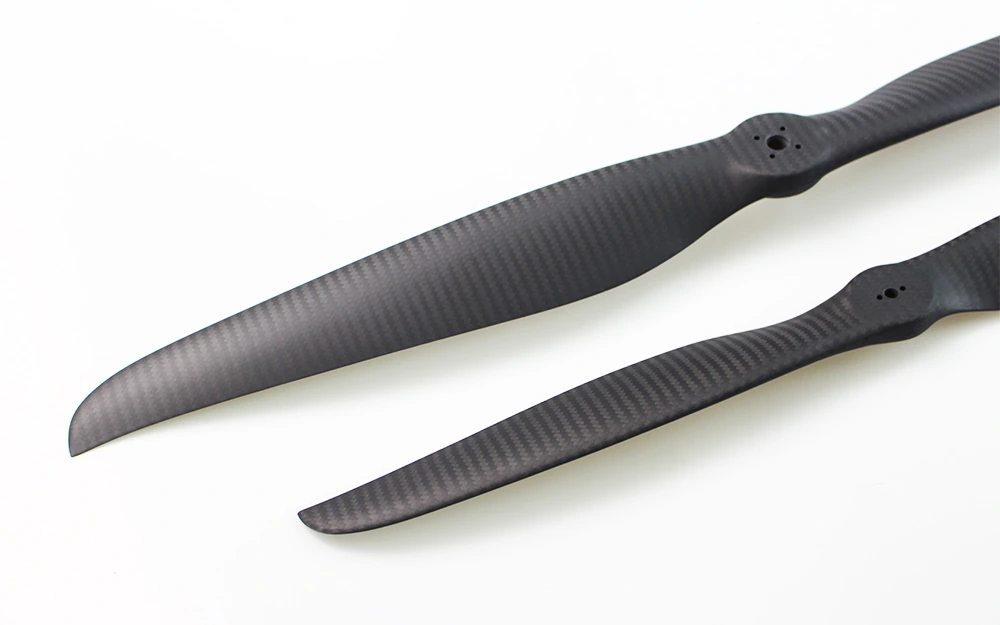

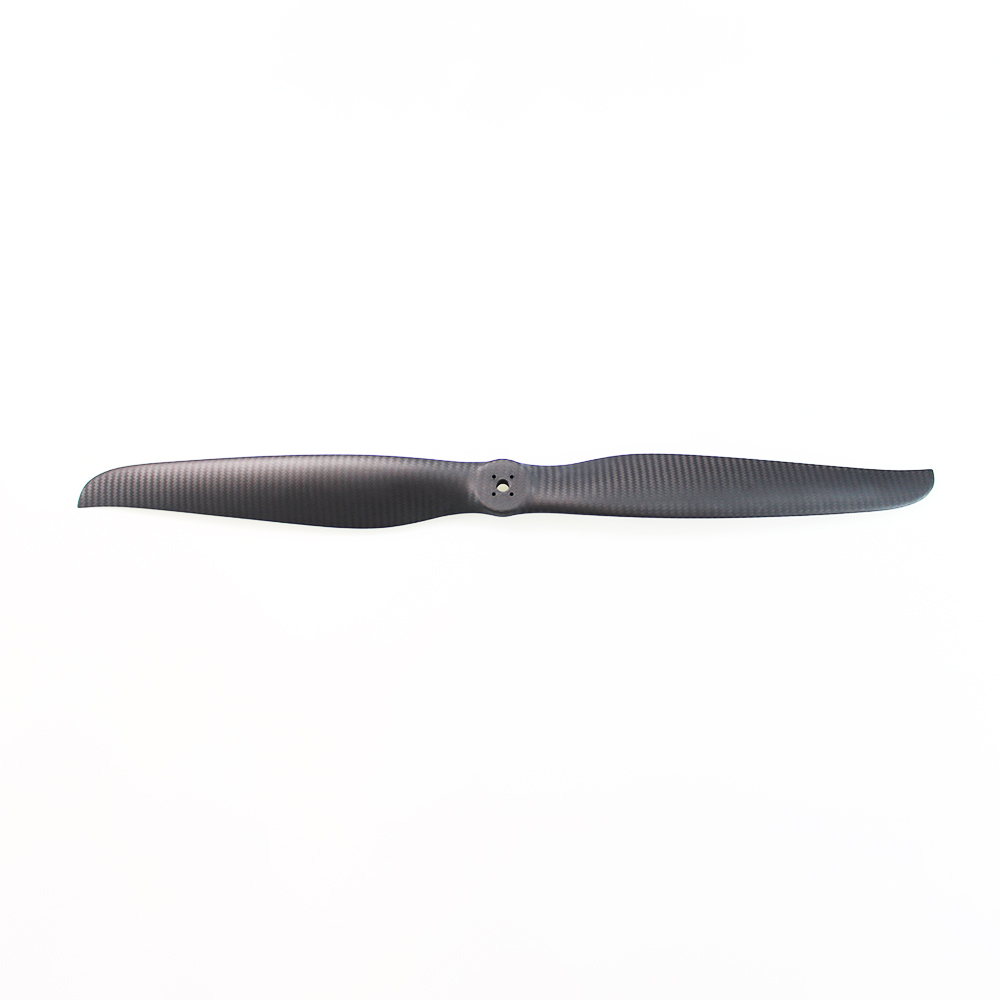

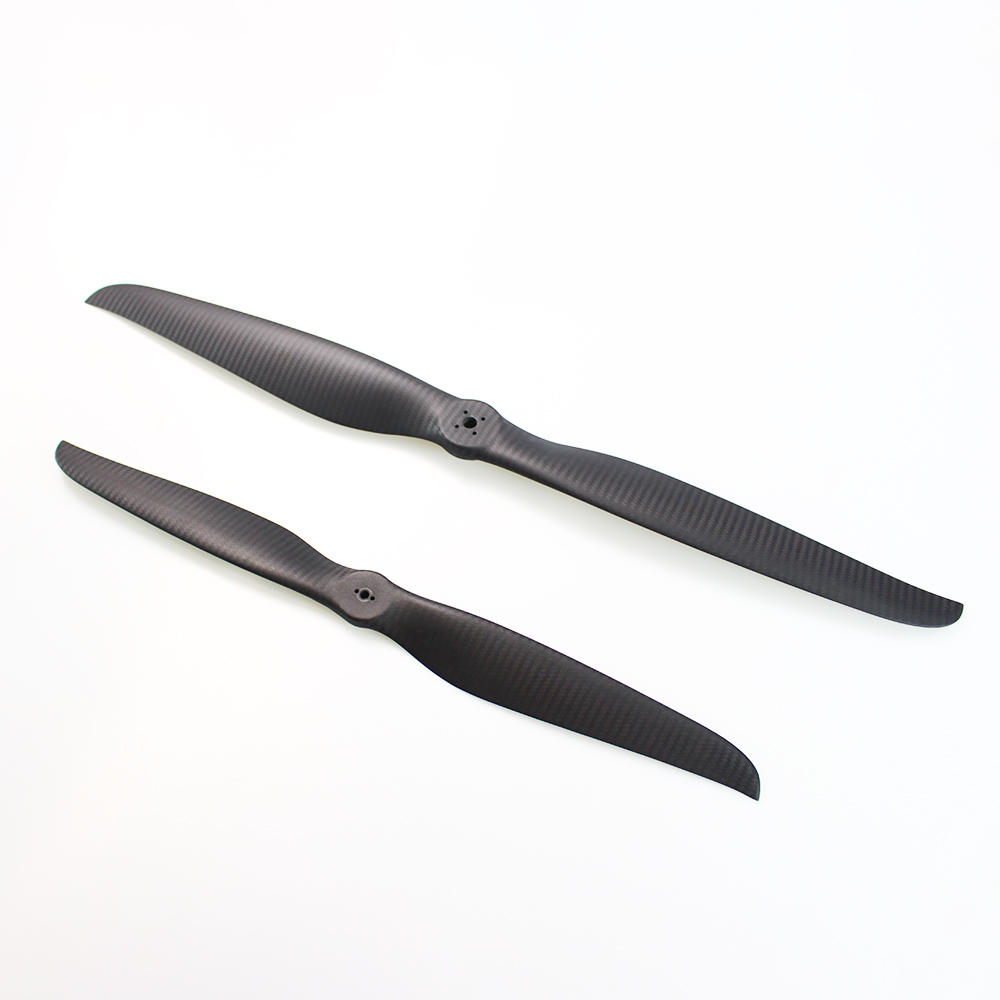

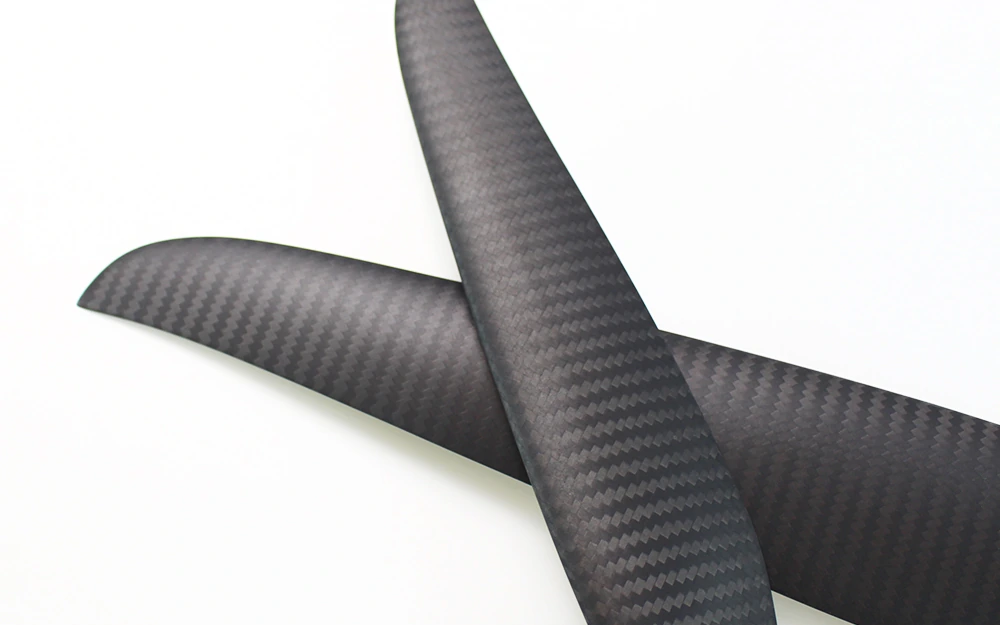

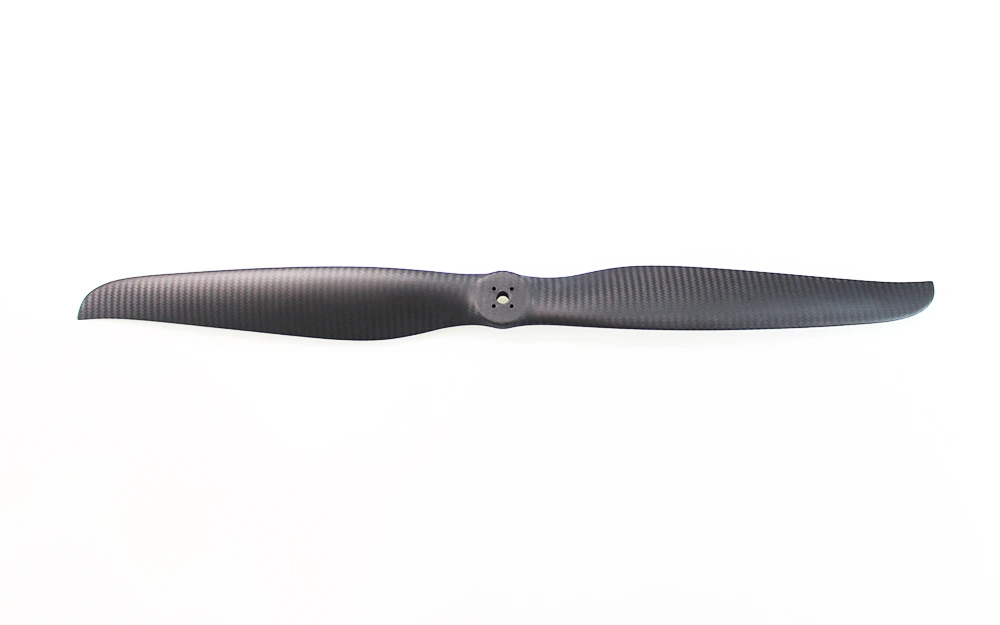

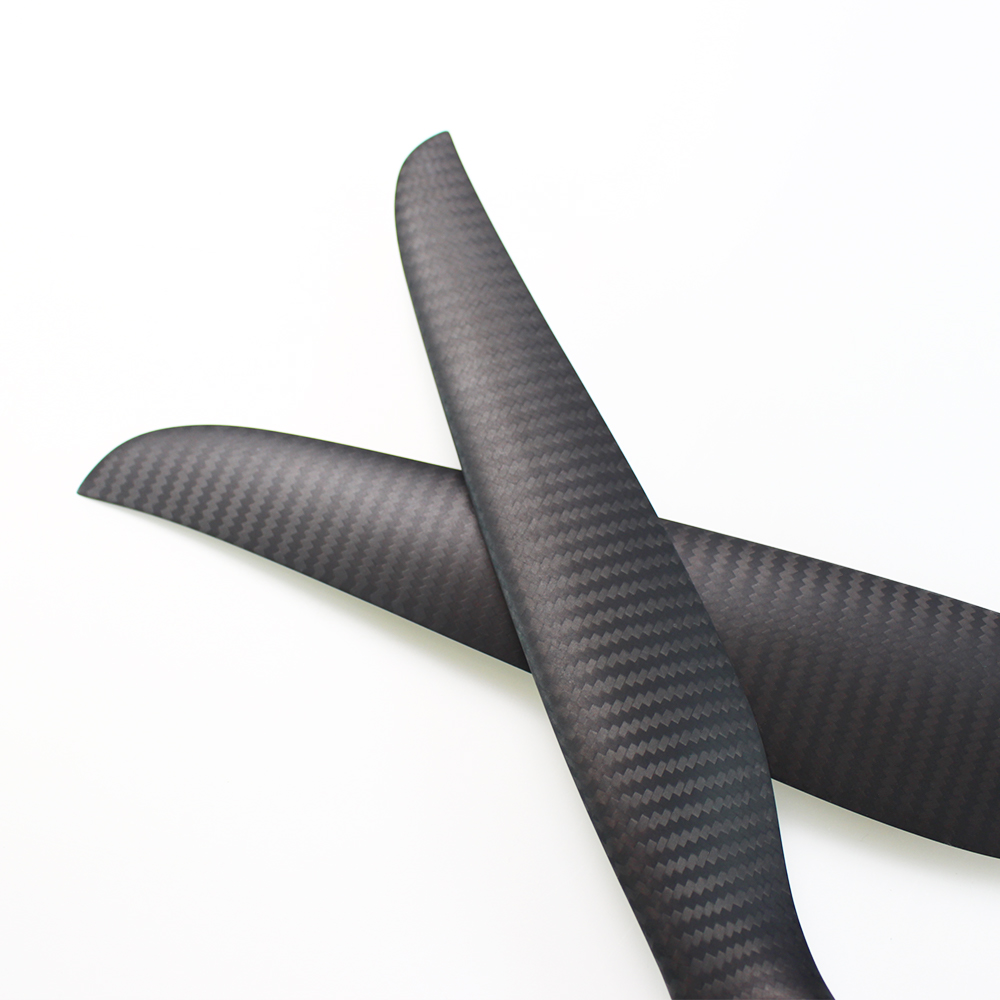

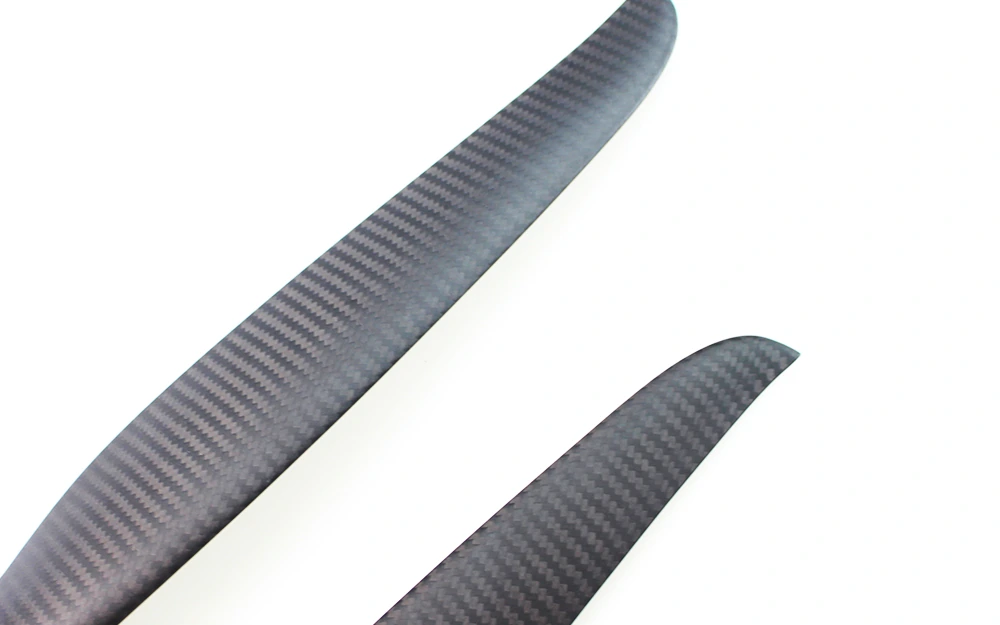

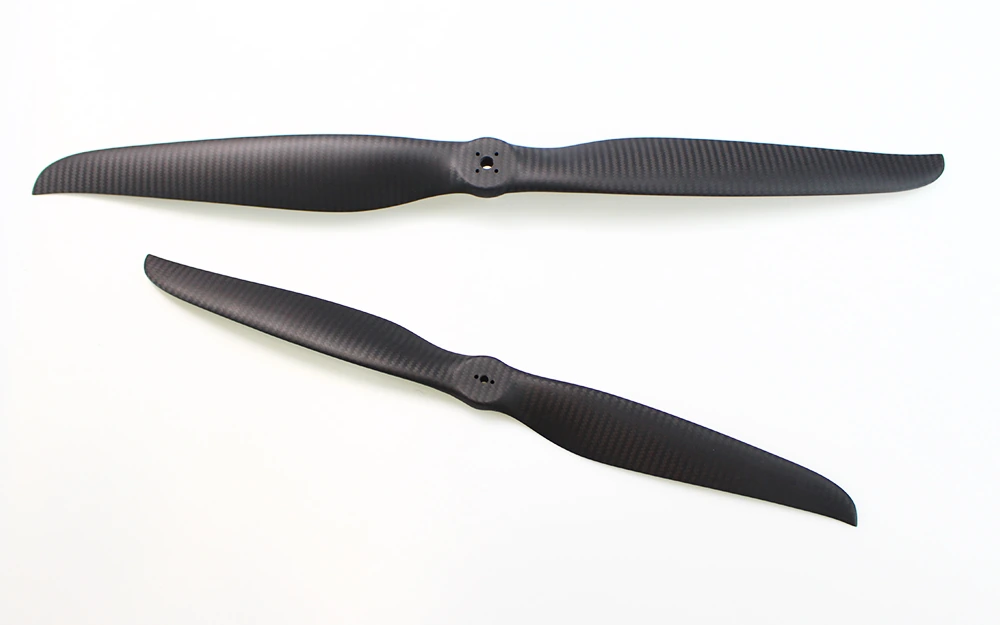

The purpose-built propellers for vtol aircraft of the Lighter lineup: narrow, thickened blades for vertical lift and efficient forward cruise. One-piece carbon fiber construction delivers a balanced, efficient blade for vtol aircraft. Diameters 18 – 82 inch.
VB details
VB series — specificationSheet P-05
01FamilyVTOL — VBPurpose-built propellers for VTOL aircraft
02Blade configurationFixed, narrow bladeThickened structure for burst power
03PlatformVTOL aircraftVertical lift and horizontal cruise
04MaterialCarbon fiberOne-piece molded
05Diameter18 – 82 inchStock range; other sizes to order
06PitchTo order (inch)Matched to motor / engine
07Hub drillingTo your motor (mm)Any bolt pattern
08Surface finishStandard glossCustom treatment available
09BrandingOptionalYour logo printed on the blade
Dimensions are built to order — full charts for stock sizes are in the catalogue. Test data available on request.
VB chart
| Diameter(inch) | Pitch(inch) | Rotation Direction |
|---|---|---|
| 18 | 7.2 | CW/CCW |
| 20 | 8 | CW/CCW |
| 22 | 7.4 / 8.8 | CW/CCW |
| 24 | 9.6 | CW/CCW |
| 26 | 10.4 | CW/CCW |
| 27 | 10.8 | CW/CCW |
| 28 | 11.2 | CW/CCW |
| 29 | 11.6 | CW/CCW |
| 30 | 12 / 13.5 | CW/CCW |
| 32 | 12.5 / 14.4 | CW/CCW |
| 34 | 13.6 / 15.3 | CW/CCW |
| 36 | 14.4 / 16.2 | CW/CCW |
| 38 | 15.2 / 17.1 | CW/CCW |
| 40 | 16 / 18 | CW/CCW |
| 42 | 16.8 | CW/CCW |
| 45 | 18 | CW/CCW |
| 48 | 19.2 | CW/CCW |
| 50 | 20 | CW/CCW |
| 52 | 20.8 | CW/CCW |
| 54 | 21.6 | CW/CCW |
| 56 | 22.4 | CW/CCW |
| 58 | 23.2 | CW/CCW |
| 60 | 24 | CW/CCW |
| 62 | 24 | CW/CCW |
| 64 | 25 | CW/CCW |
| 66 | 25 | CW/CCW |
| 68 | 25 | CW/CCW |
| 70 | 25 | CW/CCW |
| 72 | 30 | CW/CCW |
| 78 | 30 | CW/CCW |
| 82 | 31.5 | CW/CCW |
Every VB can be customized.
Size, pitch, material, blade type, surface treatment, drilling pattern, your logo — or a full one-off design developed with you.
